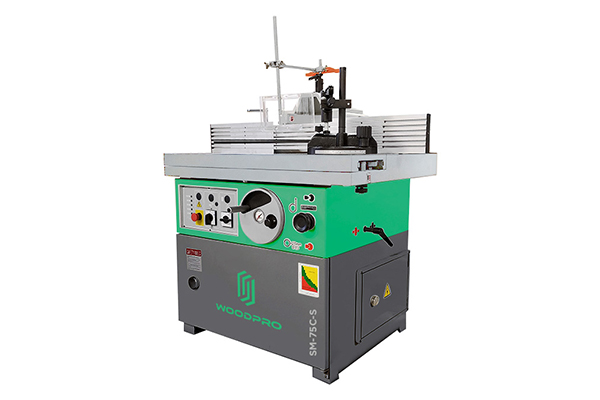

Spindle Moulder with Sliding Table SM-75C-S

The SM-75C-S Spindle Moulder with Sliding Table is a high-precision woodworking machine designed to shape the edges and surfaces of wood with ease. Perfect for creating detailed profiles, grooves, and joints, it’s ideal for professional woodworkers and furniture makers looking to achieve intricate designs.

Download Specification Sheet

Application

Joinery
Furniture
Engineered Timber

Machine Features

request a proposal
  • Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.
  • Precision ground and electronically balanced spindle.
  • V-belt drive with (5) spindle speeds is easily accessed
    from the front of the machine.
  • Electric spindle brake for added safety.
  • Spindle lock – with limit switch safety, machine will not start with lock engaged.
  • Micro spindle height adjustment with dial indicator for precise height adjustment.
  • 40mm Interchangeable cutter spindle is standard.
  • Forward/reverse spindle rotation.
  • Adjustable “finger” type fence.
  • Independent micro-fence adjustment on both sides.
  • Plug to accept Power Feeder and table is pre-drilled
    for mounding feeder base.
  • Includes the following standard equipment:
    • 40mm spindle
    • 127mm dust chute on guard & 104mm dust chute in the table
    • Safety guard
    • Mitre tenoning jig
  • Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.
  • Precision ground and electronically balanced spindle.
  • V-belt drive with (5) spindle speeds is easily accessed
    from the front of the machine.
  • Electric spindle brake for added safety.
  • Spindle lock – with limit switch safety, machine will not start with lock engaged.
  • Micro spindle height adjustment with dial indicator for precise height adjustment.
  • 40mm Interchangeable cutter spindle is standard.
  • Forward/reverse spindle rotation.
  • Adjustable “finger” type fence.
  • Independent micro-fence adjustment on both sides.
  • Plug to accept Power Feeder and table is pre-drilled
    for mounding feeder base.
  • Includes the following standard equipment:
    • 40mm spindle
    • 127mm dust chute on guard & 104mm dust chute in the table
    • Safety guard
    • Mitre tenoning jig

Safety

request a proposal
The SM-75C-S Spindle Moulder with Sliding Table is designed with key safety features, including an electric spindle brake and a spindle lock with a limit switch to prevent the machine from starting when the lock is engaged. Its forward/reverse spindle rotation and adjustable finger-type fence enhance control during operation, while the precision ground spindle ensures stability. Additionally, the machine includes a safety guard and dust chutes to improve both operator protection and worksite cleanliness.

Specifications

request a proposal
Technical Specifications
Features Specifications
Dimension of Working Table 1000mm x 800mm
Working Table Height 900mm
Spindle Vertical Stroke 160mm
Spindle Adjustment Manual
Fence Adjustment Manual
Control Panel Manual Type at Front of Machine
Interchangeable Spindle MK 5
Maximum Tool Diameter Below Table Top: 210mm, Above Table Top: 335mm
Spindle Speed 3000rpm / 4000rpm / 6000rpm / 8000rpm / 10000rpm
Rotation Forward and Reverse
Sliding Table Dimensions 1000 x 260mm
Sliding Table Stroke 940mm
Motor Power 7.5HP
