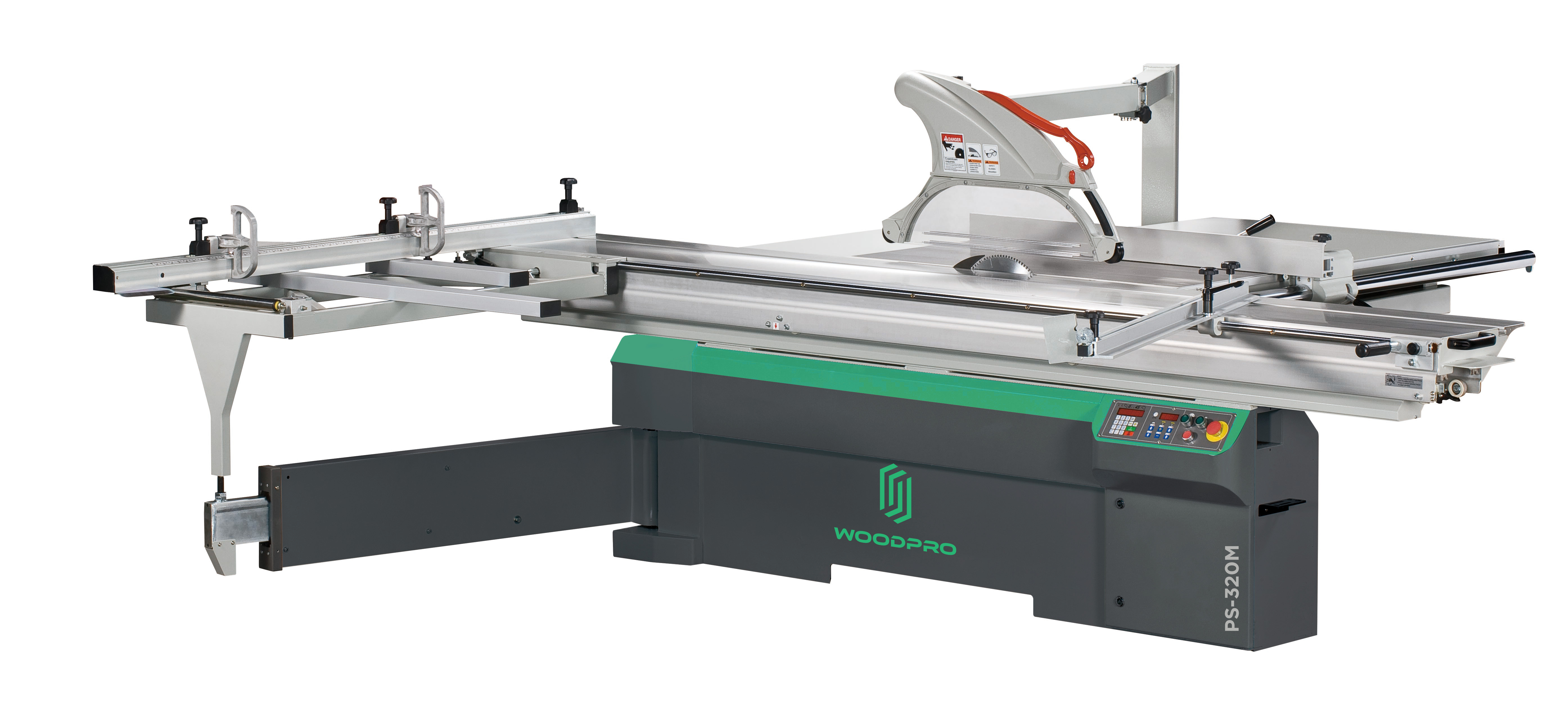

The PS-320M Sliding Table Saw (Motorised) is for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more.
A STIRLING GROUP COMPANY
A STIRLING GROUP COMPANY
The PS-320M Sliding Table Saw (Motorised) is for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more.
Powerful 7.5 HP main motor with separate 1 HP scoring motor.
• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine.
• Digital display for blade height and RPM.
• Heavy-duty outrigger for strong support of workpiece during cutting operations.
• Metric scales for both rip and crosscut fences.
• Manual lateral and vertical scoring adjustment by externally mounted handles for operator
convenience.
• Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included.
• Overhead saw blade guard with built in dust port included (CE-type).
Powerful 7.5 HP main motor with separate 1 HP scoring motor.
• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine.
• Digital display for blade height and RPM.
• Heavy-duty outrigger for strong support of workpiece during cutting operations.
• Metric scales for both rip and crosscut fences.
• Manual lateral and vertical scoring adjustment by externally mounted handles for operator
convenience.
• Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included.
• Overhead saw blade guard with built in dust port included (CE-type).
The PS-320M Sliding Table Saw is equipped with key safety features, including motorised blade rise/fall and tilting with an electronic angle display for precise control. An overhead blade guard with a dust port, along with an eccentric clamp for secure workpiece handling, ensures a safe cutting environment while reducing debris exposure.
| Features | Specifications |
|---|---|
| Main Saw Blade Diameter | Max. Ø350mm (*400mm) |
| Max. Cutting Height with Blade at 90° | 100mm (*125mm) |
| Max. Cutting Height with Blade at 45° | 73mm (*88mm) |
| Main Blade Height & Tilt Adjustment | Motorised |
| Rectified Cast Iron Fixed Table Dimension | 620mm x 1125mm |
| Main Blade Speed | 3000 / 4000 / 5000 / 6000 RPM |
| Sliding Table Length | 380 x 3200mm |
| Main Saw Bore | Ø30mm |
| Main Motor Power | 7.5HP with brake |
| Scoring Saw Blade | Ø120mm |
| Scoring Motor Power | 1HP with brake |
| Scoring Blade Speed | 8000 RPM |
| Cutting Width | 1300mm |
| Saw Table Extension | 670mm |
| Main Channel Dust Collection | Ø127mm |
| Saw Guard Dust Collection | Ø76mm |
* = Non CE
